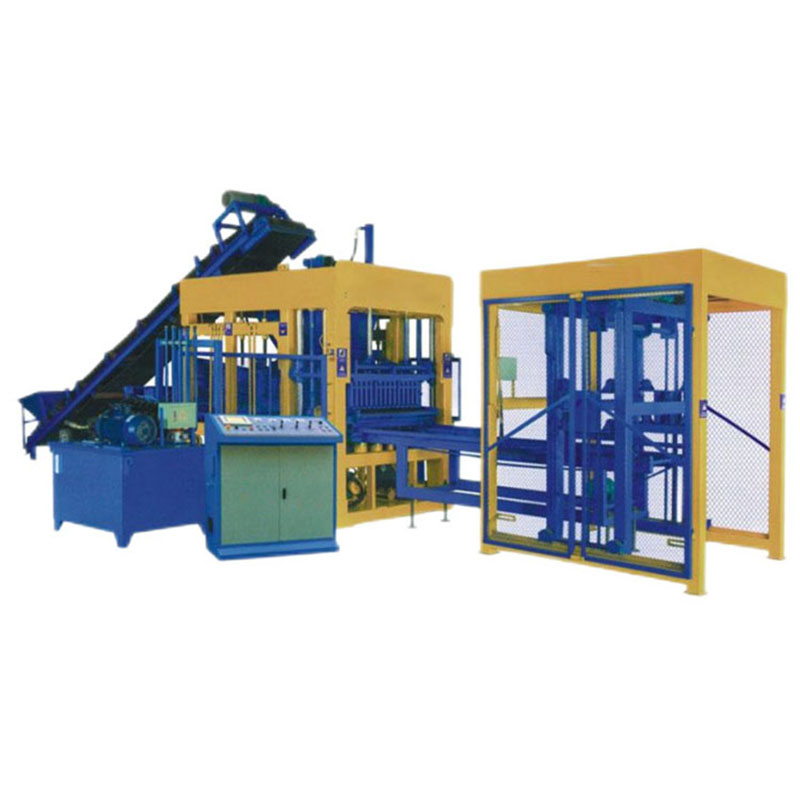

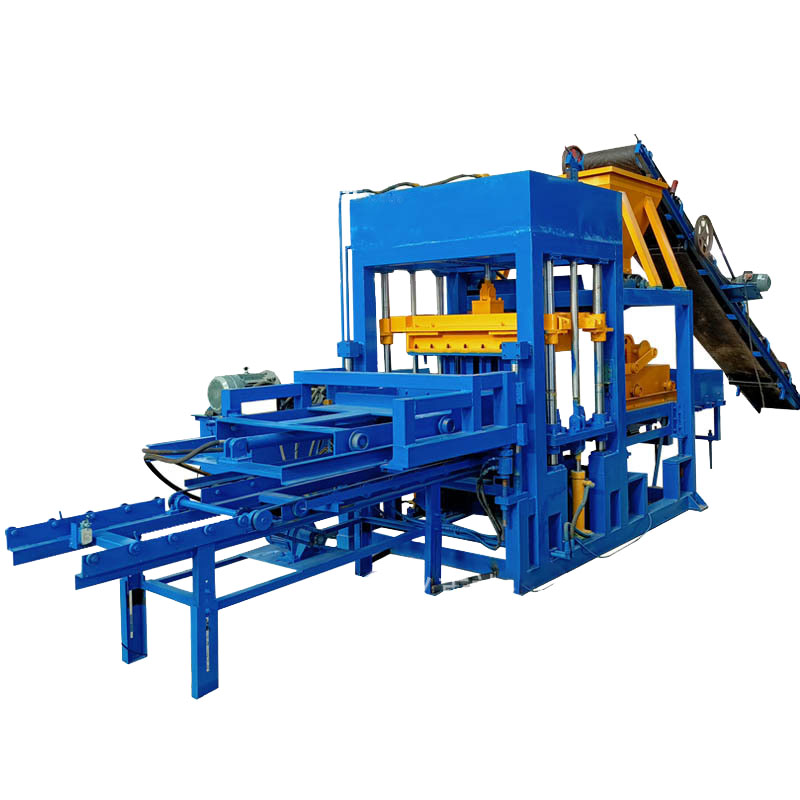

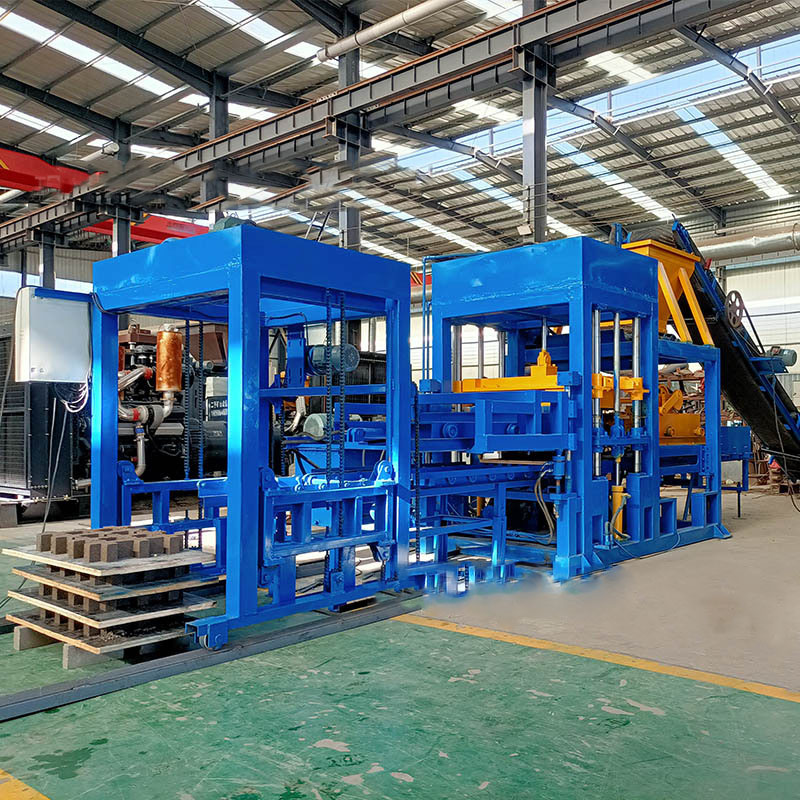

4-15 Automatic hydraulic block making machine

The block production adopts table cibrating cloth,which cibrates up and down to form,the block forming speed is fast,the density is large, and the strength is high.

    The block production adopts table cibrating cloth,which cibrates up and down to form,the block forming speed is fast,the density is large, and the strength is high.

    Vibration frequency

    3800-4000（times/sub）
    Total weight

    3.2t
    Dimensions

    3200*2100*2350mm
    Molding cycle

    15-25(s)
    Pallet size

    900*550*35mm
    Installed capacity

    17.9kw
    Number per module（pcs/mould）

    Hollowbrick（390×190×190mm）4 pcs/mould
    Standardbrick（240×52×115mm）28 pcs/mould
