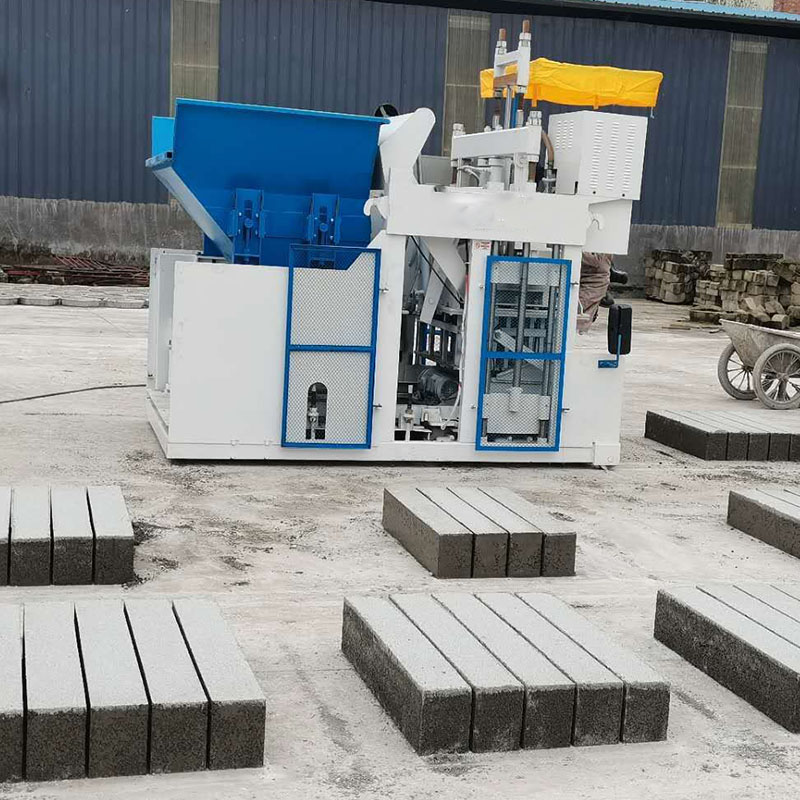

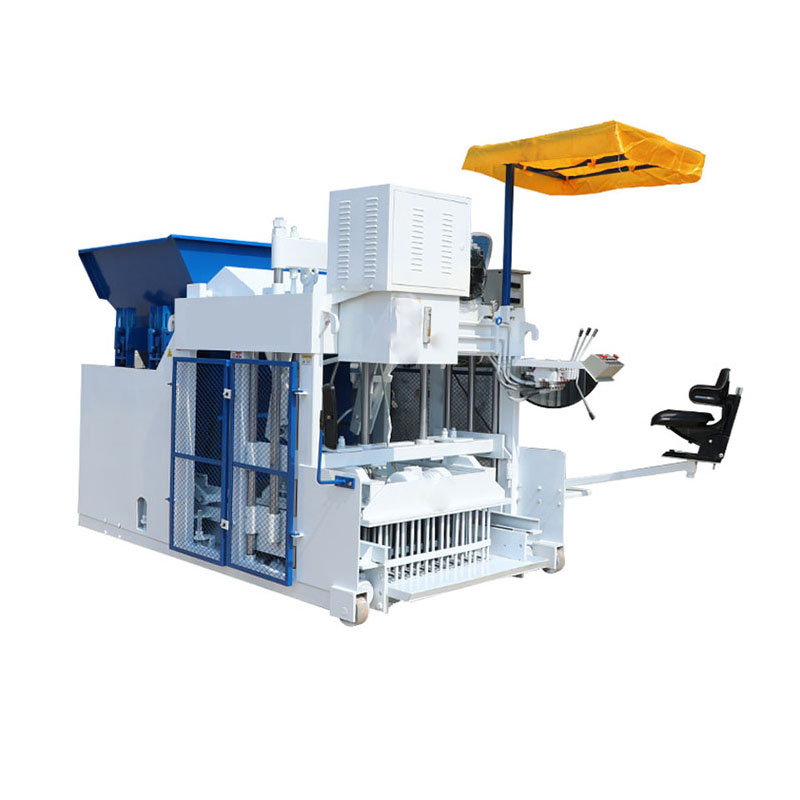

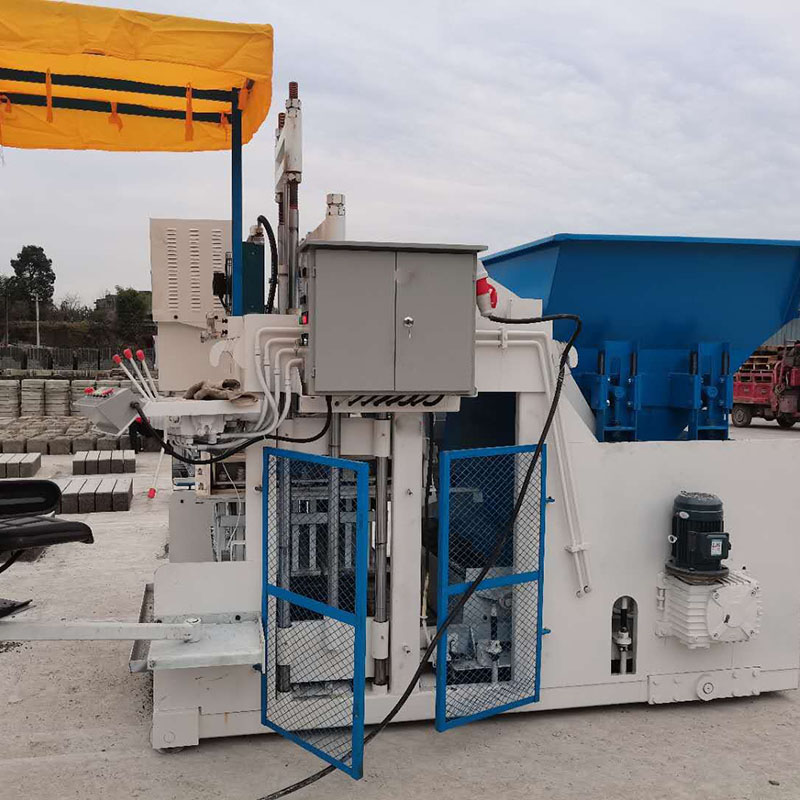

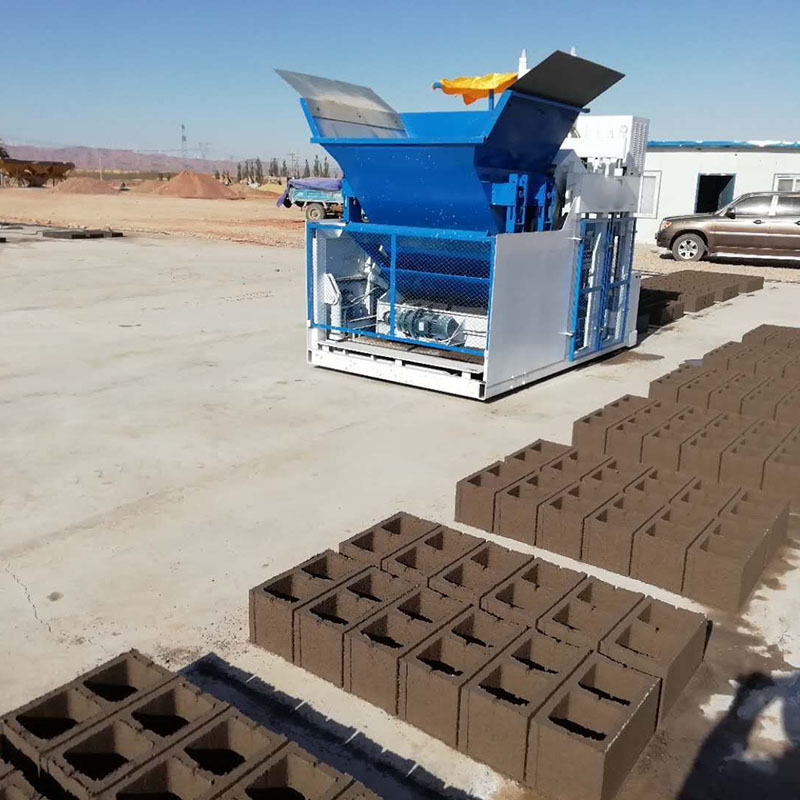

12-72A Mobile walking block making machine

This machine adopts mold box impact excitation, hydraulic transmission, personnel operation walking, forward, backward, with greater productivity than other models.

    This machine adopts mold box impact excitation, hydraulic transmission, personnel operation walking, forward, backward, with greater productivity than other models.

    Number per module

    block（390*190*190）12pcs/one time
    block（390*150*190）14pcs/one time

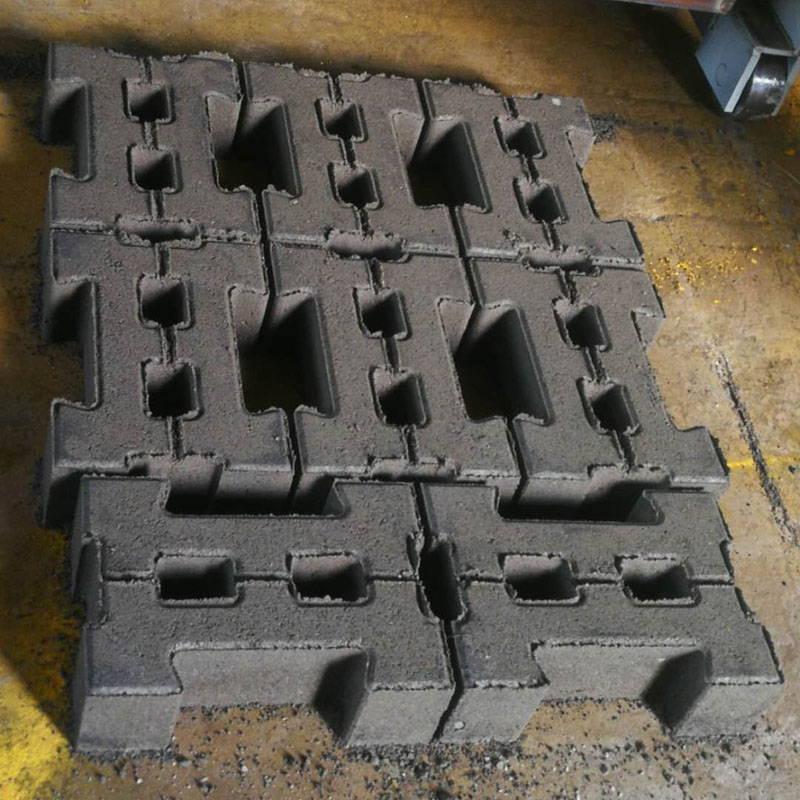

    Standard brick（240*115*53)72pcs/one time
    Hourly output

    （390*190*190）1440pcs
    （390*150*190）1680pcs
    (240*115*53) 8640pcs
    Hydraulic system working pressure

    14-20MPa
    Vibration frequency

    2900times/min
    Vibration mode

    Three-dimensional mould vibration
    Demoulding mode

    Hydraulic demoulding
    Travelling mode

    Electric travelling,hydraulic steering
    power

    21.5KW
    weight

    4500KG
    Total volume

    3250*2100*2350mm
